How to boost your solar power system with solar optimization?
If you have a solar power system or are planning to install one, you might be wondering how to get the most power out of it. One way to enhance the performance and efficiency of your solar system is to use solar optimization devices. These devices can help you overcome the challenges of shading, mismatch, different orientation, and aging that can reduce the output of your solar panels.
In this article, we will explain what solar optimization is, how it works, and what types of solar optimization devices are available. We will also help you decide whether you need solar optimization for your solar system and how to choose the best option for your needs.
What is Solar Optimization?
Solar optimization is the process of maximizing the power output of each solar panel in a solar system. Solar optimization devices are also known as module-level power electronics (MLPEs), which are attached to each solar panel to optimize their performance individually.
Solar optimization devices use a technology called maximum power point tracking (MPPT) to adjust the voltage and current of each solar panel according to the environmental conditions and the characteristics of the panel. This way, each panel can produce the maximum amount of power possible, regardless of the performance of the other panels in the system.
Why Do You Need Solar Optimization?
Solar optimization not only can help you increase the energy output and the lifespan of your solar system but also can also help you monitor and maintain your solar system more easily and effectively.
Here are some of the benefits of solar optimization:
· Less Shading Issues
Shading is one of the main factors that can lower the output of your solar system. Shading can occur due to trees, buildings, clouds, dust, or dirt on your solar panels. When a part of a solar panel is shaded, it creates a bottleneck that reduces the current flow of the whole panel and the whole string of panels connected to it, which could significantly decrease the power output of your solar system. Solar optimization devices can bypass the shaded parts of the panels and allow the unshaded parts to operate normally, minimizing the power losses due to shading.
· Eliminate Panel Mismatch
Mismatch is another factor that can affect the output of your solar system. Mismatch occurs when the electrical parameters of the solar panels in a system are different due to manufacturing variations, aging, degradation, or damage. When the panels in a system have different voltages or currents, they cannot operate at their optimal points, resulting in power losses. Solar optimization devices can match the voltage and current of each panel to their optimal points, reducing the power losses due to mismatch.
· Extend Solar System's Lifespan
Solar optimization devices can protect your solar system from potential damages caused by hot spots, reverse currents, or overvoltage. Hot spots are areas of high temperature on the solar panels that can occur due to shading, mismatch, or poor ventilation. Hot spots can degrade the performance and the lifespan of the panels. Reverse currents are currents that flow in the opposite direction of the normal current flow, which can happen when a panel is shaded or damaged. Reverse currents can cause overheating and fire hazards. Overvoltages are voltages that exceed the maximum voltage rating of the solar system, which can happen due to lightning strikes, grid fluctuations, or faulty wiring. Overvoltages can damage the solar panels, the inverters, or the electrical appliances. Solar optimization devices can prevent or mitigate these issues by regulating the voltage and current of each panel, enhancing the safety and the durability of your solar system.
· Monitor and Maintenance

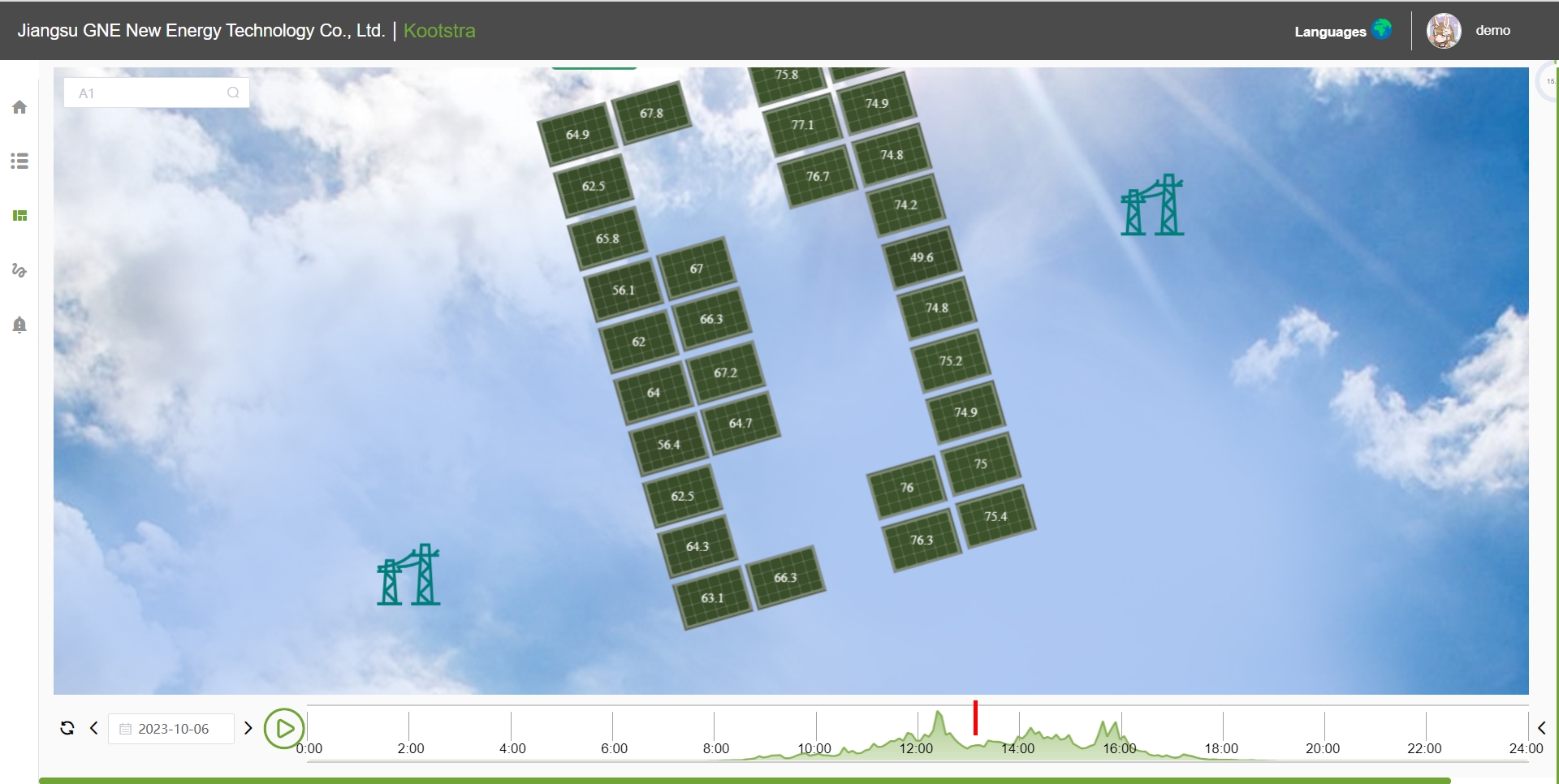

Solar optimization devices can provide you with real-time data and alerts on the performance and the status of each panel in your solar system. You can access this information through a web portal or a mobile app, and use it to troubleshoot any problems, optimize your energy consumption, or plan your maintenance schedule. Solar optimization devices can also enable remote control and firmware updates for your solar system, making it easier and more convenient to manage your solar system.
What Types of Solar Optimization Devices are There?
There are four main types of solar optimization devices:
1. Discrete DC optimizers
2. Smart panels
3. Maxim panels
Let's take a look at each type and how they differ from each other:
1. Discrete DC optimizers
Discrete DC optimizers are separate devices that are attached to each solar panel in a system. They optimize the voltage and current of each panel before sending it to a central inverter, which converts the DC power to AC power for the grid or the load. Discrete DC optimizers are compatible with most solar panels and inverters, and they can be installed on some or all of the panels in a system, depending on the shading or mismatch conditions. Discrete DC optimizers are the second most expensive option for solar optimization, after microinverters. One of the leading manufacturers of discrete DC optimizers is Tigo, which offers a range of products and solutions for different applications and budgets.
2. Smart panels
Smart panels are solar panels that have integrated DC optimizers built into them. They work in the same way as discrete DC optimizers, but they are more convenient and cost-effective, as they eliminate the need for separate devices and wiring. However, smart panels require that all of the panels in a system have optimizers, which may not be necessary or desirable for some situations. Smart panels are also compatible with most inverters, and they can be mixed and matched with different brands and models of solar panels. Many of the smart panels on the market are the result of collaborations between Tigo and other module manufacturers, such as Jinko Solar, Canadian Solar, and Trina Solar.
3. Maxim panels
Maxim panels are solar panels that have microchip optimizers embedded in them. They optimize the voltage and current of each cell string in a panel, rather than the whole panel. They also bypass the shaded or mismatched cell strings, rather than boosting them, which reduces the voltage drop and the power losses. Maxim panels are the cheapest option for solar optimization, as they use simpler and smaller devices than DC optimizers or microinverters. However, Maxim panels are not very popular or widely available, as they have been phased out by some of the module manufacturers that used to offer them, such as Jinko Solar, Suntech, and ET Solar.
What about Bypass Diodes?
Bypass diodes are devices that are used to prevent power loss and damage in solar panels due to shading or faulty cells. They are connected in parallel with the solar cells or panels, but with opposite polarity, so that they only conduct current when the cell or panel is reverse biased. This allows the current to flow around the underperforming or faulty section, rather than through it, and reduces the voltage drop and heat generation.
However, Bypass diodes don't optimize solar panels individually. Also they will be deactivated when there’s significant shading because the voltage is too low, which could cause the entire system to shut off.
How to Choose the Best Solar Optimization Device for Your Needs?
The best solar optimization device for your needs will depend on several factors, such as:
· Budget
· Shading Situation
· Your Safety Concerns
· System Size and Configuration
· Monitoring and Maintenance Preferences
Here are some general guidelines to help you choose the best solar optimization device for your needs:
· If you have a low budget and minimal shading, you may not need solar optimization at all, or you may opt for the cheapest option, which is Maxim panels, if you can still find them.
· If you have a moderate budget and moderate shading, you may choose the most cost-effective option, which is smart panels(intergrated solar optimizer), or you may choose discrete DC optimizers, if you only want to optimize some of the panels in your system.
· If you have a high budget and high shading, you may choose the most advanced option, which is microinverters, or you may choose discrete DC optimizers, if you want to have more flexibility and compatibility with your system components.
· If you have a high concern for safety, you may choose microinvertersor DC optimizers with shut down function, as they reduce the risk of fire and electric shock by lowering the voltage on your roof and isolating the faults in your system.
· If you have a small or simple system, you may choose any of the options, as they will not make much difference in terms of installation and performance.
· If you have a large or complex system, you may choose microinverters, as they will make it easier to install and expand your system, and they will also provide more consistent and reliable performance across your system.
· If you have a high interest in monitoring and maintaining your system, you may choose any of the options, as they will all provide you with panel-level data and alerts, and some of them will also allow you to control and update your system remotely.
Conclusion
Solar optimization is a way to improve the performance and efficiency of your solar system by maximizing the power output of each solar panel. Solar optimization devices are also known as module-level power electronics (MLPEs), which are attached to each solar panel to optimize their voltage and current. Solar optimization devices can help you overcome the challenges of shading, mismatch, and aging that can reduce the output of your solar system. Solar optimization devices can also help you monitor and maintain your solar system more easily and effectively.
There are four main types of solar optimization devices: discrete DC optimizers, smart panels, Maxim panels, and microinverters. They differ in terms of cost, convenience, compatibility, and performance. The best solar optimization device for your needs will depend on your budget, your shading situation, your safety concerns, your system size and configuration, and your monitoring and maintenance preferences.
11-28-2023
